SKF 706 CD/P4A
SKF 706 CD/P4A

SKF 706 CD/P4A

Product ID : 706 CD/P4A
Product Tags : SKF Bearing
Product Attributes :

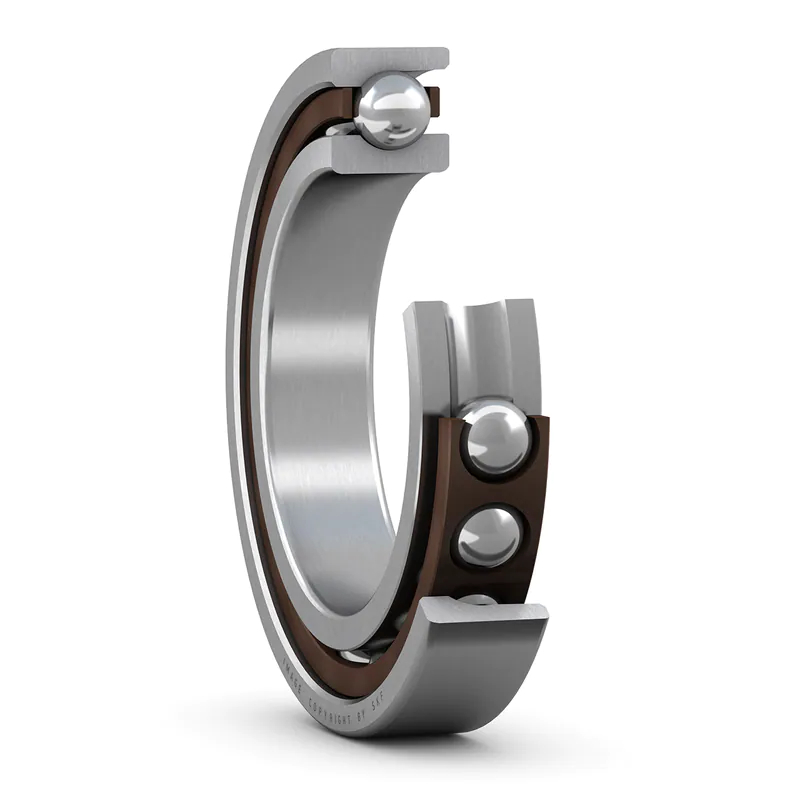

Super-precision, high-capacity, single row angular contact ball bearing with 15° contact angle.

Product Description
Universal matching bearing(s)
No
Dimensions - 706 CD/P4A

Dimensions

d
mm
Bore diameter
D
17 mm
Outside diameter
B
mm
Width
d1
9.5 mm
Shoulder diameter of inner ring (large side face)
d2
9.5 mm
Shoulder diameter of inner ring (small side face)
D1
13.5 mm
Shoulder diameter of outer ring (large side face)
r1,2
min.0.3 mm
Chamfer dimension
r3,4
min.0.15 mm
Chamfer dimension
a
4.6 mm
Distance from side face to pressure point



Abutment dimensions - 706 CD/P4AAbutment dimensions - 706 CD/P4A

Abutment dimensions

da
min.mm
Diameter of shaft abutment
db
min.mm
Diameter of shaft abutment
Da
max.15 mm
Diameter of housing abutment
Db
max.16.2 mm
Diameter of housing abutment
ra
max.0.3 mm
Radius of fillet
rb
max.0.15 mm
Radius of fillet
dn
10.3 mm
Position of oil nozzle
