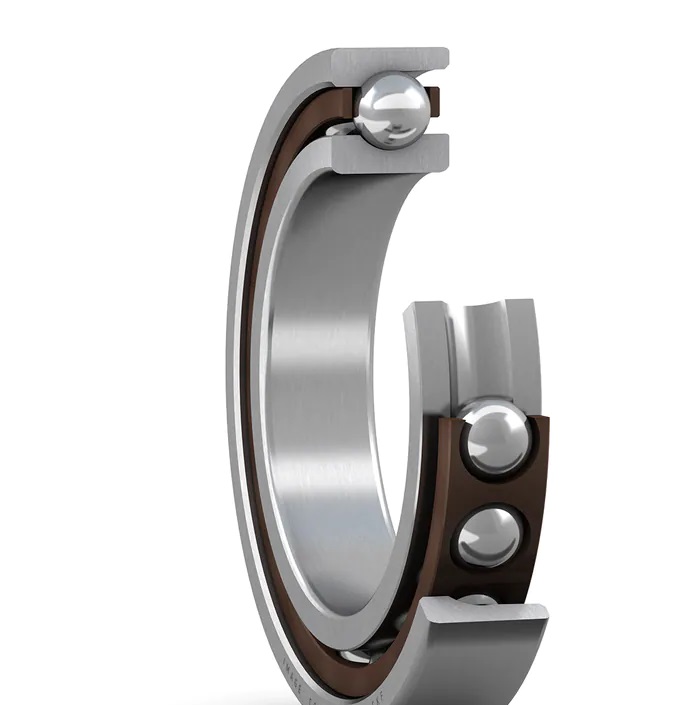

Universal matching bearing(s) |
Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
|
d |
7 mm
|
Bore diameter |
---|---|---|
D |
19 mm
|
Outside diameter |
B |
6 mm
|
Width |
d1 |
10.8 mm
|
Shoulder diameter of inner ring (large side face) |
d2 |
10.8 mm
|
Shoulder diameter of inner ring (small side face) |
D1 |
15.2 mm
|
Shoulder diameter of outer ring (large side face) |
r1,2 |
min.0.3 mm
|
Chamfer dimension |
r3,4 |
min.0.15 mm
|
Chamfer dimension |
a |
6.1 mm
|
Distance from side face to pressure point |
da |
min.9 mm
|
Diameter of shaft abutment |
---|---|---|
db |
min.9 mm
|
Diameter of shaft abutment |
Da |
max.17 mm
|
Diameter of housing abutment |
Db |
max.18.2 mm
|
Diameter of housing abutment |
ra |
max.0.3 mm
|
Radius of fillet |
rb |
max.0.15 mm
|
Radius of fillet |
dn |
11.7 mm
|
Position of oil nozzle |
